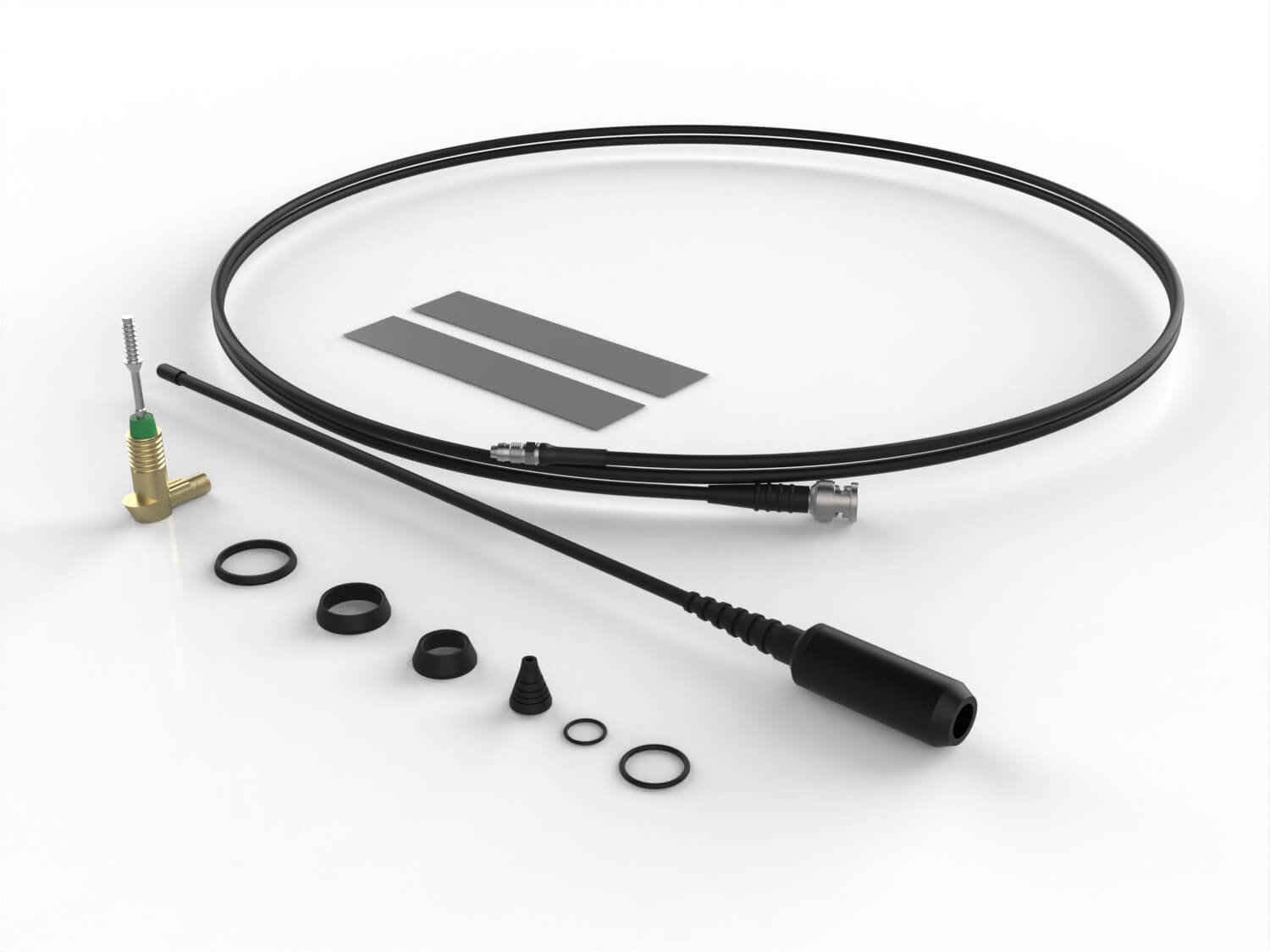

M090 LYNX MICRO PILOT SYSTEMS VHF SHORT FLEXIBLE ANTENNA

The Short Flexible VHF Antenna is tuned to the frequency range 118-137MHz for use with airband radios.

The antenna is designed for mounting into the metal or composite skin of an aircraft For use in glass fibre structures. the antenna is supplied with a self adhesive aluminium foil ground~plane.

To minimise the length of the antenna element. the design incorporates a base tuning coil. The short flexible element makes the antenna suitable for mounting on the nose or underneath many aircraft.

The lead is fitted with an FME plug at the antenna feed and a BNC plug for direct connection to a radio. The lead is one metre long (three feet).

• Short flexible design
• Optimised for airband frequency
• High quality crimped FME and BNC connectors
• complete with 2 mt lead
